Cisco IP Phone 303 can't register

[songmeo]

Hi,

I’m trying to connect a Cisco IP Phone 303 with my Asterisk server but I keep getting Failed(Authenticate) on the phone display.

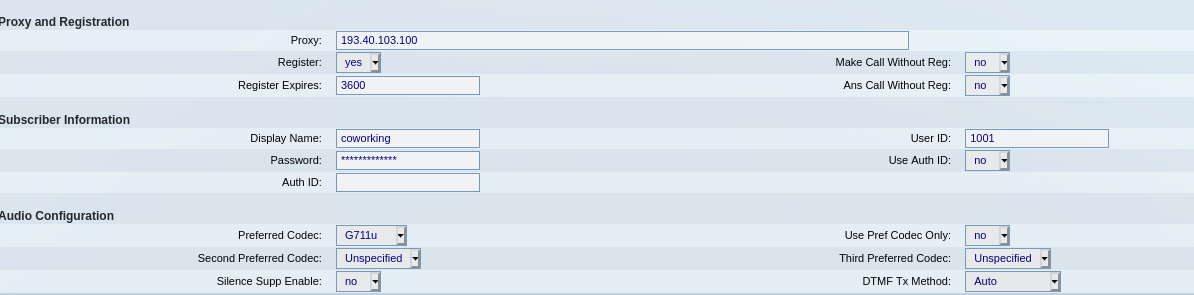

Here are the configurations I have on the phone. What I suspect the most is under Subscriber information, I’m not sure about what UserID should be, or whether I should add Auth ID:

Here is the pjsip configuration for the phone:

[coworking]
type=endpoint
context=testing
disallow=all
allow=ulaw
auth=coworking-auth
aors=internal
rtp_symmetric=yes
force_rport=yes
rewrite_contact=yes
direct_media=no

[coworking-auth]
type=auth
auth_type=userpass
username=1001
password=secret123

[internal]
type=aor
max_contacts=10
;contact=sip:server@193.40.103.100
;contact=sip:coworking@172.28.65.19

[jcolp]

Change “[coworking]” to “[1001]”. This will allow the appropriate endpoint to be matched, otherwise you will need to experiment with User ID and Auth ID to have separate values.

[songmeo]

Thank you for your fast response.
I changed Display name to 1001 but it still doesn’t work. Here is the current state:

[jcolp]

I was referring to in pjsip.conf, not on the phone.

[songmeo]

I did that and now it gave me different error on the phone display Failed 404

The log said
[Feb 3 13:50:31] WARNING[32]: res_pjsip_registrar.c:1080 find_registrar_aor: AOR '' not found for endpoint '1001'

[jcolp]

Try changing the AOR from “[internal]” to “[1001]” as well, along with changing the “aors” value in the endpoint to “1001”. If that fails you’ll need to provide the actual SIP traffic using the “pjsip set logger on” CLI command.

[songmeo]

Hi,
It works!! Thank you so much!
